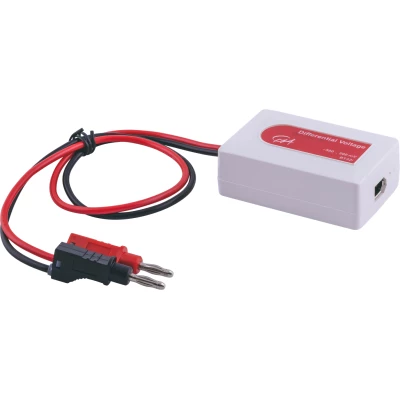

Voltage sensor -500..500 mV (differential)

Description

The sensor has multiple inputs, meaning measurements can be taken directly across circuit elements without the limitations of a common ground.
This sensor has two 4 mm banana plugs for easy connection.
The sensor consists of a small signal amplifier with a wide frequency range.

Technical specifications:

• Measuring range: -500 to +500 mV (voltage between input terminals)
• Resolution: 0.38 mV
• Maximum input voltage: ± 50 V
• Bandwidth (small signal): 120 kHz (-3 dB)
• Maximum measurement frequency: 100 kHz (CoachLab II+, WiLab) / 1 MHz (VinciLab 2)
• Requires: One sensor cable (BTsc_1 or BTsc_1Short)
• Warranty: 3 years

The (differential) voltage sensor can be used in various physics experiments, such as:

• Measurements in series and parallel circuits
• Voltage-current ratios
• Electrical component characteristics, e.g., a light bulb, a diode, a photoresistor
• Charging and discharging capacitors
• Ohm’s law
• Measurements of internal resonance and electromagnetic fields

All technical specifications of the differential voltage sensor are described in the Differential Voltage Sensor manual, see downloads.
