Spirometer sensor

Item nr. BT82I Category
The CMA Spirometer BT82i measures air flow rate during respiration in the range from -5 to 5 L/s. The spirometer is especially designed for measurements of flows and volumes of air in the lungs.

Prices are only visible to logged in users. Sign in or create an account to view our prices.

Description

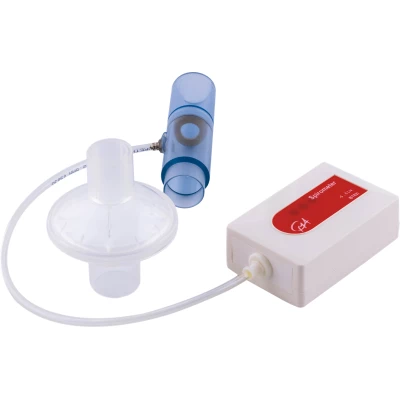

The spirometer sensor consists of a flow tube through which the air is inhaled and exhaled.
To lessen the possibility of cross contamination between subjects the Spirometer is delivered with a disposable bacterial filter and 10 disposable mouthpieces. Replacement of a bacterial filter (CMA art. nr BT82fil) and mouthpieces (CMA art. nr BT82mp) can be ordered separately from CMA.

Technical specifications:

  • Measurement range: -5 to +5 L/s
  • Resolution: 0.01 L/s
  • Maximum measurement frequency: 100 kHz (CoachLab II+, WiLab) / 1 MHz (VinciLab 2)
  • Warranty: 3 years

All technical specifications of the spirometer sensor are described in the product manual, see downloads.

The spirometer can be used to perform a variety of experiments:

  • Recording breathing patterns before, during and after exercise
  • Measuring important lung capacities like:
    • Forced Expiratory Volume (FEV) – the volume of air exhaled after a short period of constant effort. When this test is done over a one-second interval, it is known as FEV1
    • Forced Vital Capacity (FVC) – the volume of air exhaled by a forced maximal exhalation after a full inhalation
    • Tidal Volume (TV) – the volume of air, inhaled and exhaled at rest

The Spirometer can be directly connected to the analog BT inputs of the CMA interfaces.
Attention: The sensor cable BT – IEEE1394 needed to connect the sensor to an interface is not supplied with the sensor and has to be purchased separately (CMA Art. Nr BTsc_1 or BTsc_1Short).
