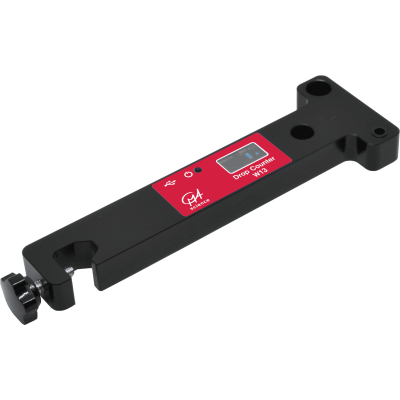

Wireless drop counter

Description

The sensor can be used wirelessly via Bluetooth or wired via USB with the Coach 7 or Coach 7 lite programs/apps on computers (Windows and Mac), Chromebooks and mobile devices (Android and iOS). The sensor features a color OLED display that shows sensor information and measured values, allowing it to be used as a standalone measuring instrument.
As droplets pass through the sensing area, the sensor detects and records each drop automatically using an infrared detection system.

Technical specifications:

• Measuring range: 0 .. 10 drops per second (or 0 .. 100 ml volume)
• Resolution: 1 drop
• Warrantee: 36 months
• Detection Hole Size: Ø 11.5 mm
• Electrode Hole Size: Ø 13mm
• Temperature sensor Hole size: Ø 4mm
• OLED display: 0.96” 128 x 64px
• Battery life: 7h when fully charged (rechargeable)
• Connection: Bluetooth 5, Low Energy (Mac, Android, iOS) Bluetooth 2.1, Classic (Windows) or USB-C 2.0
• Included accessories:
  • 100 ml plastic syringe with Luer-lock; by removing the piston the syringe becomes a titrant solution reservoir
  • Two 3-way valves with Luer-lock connectors
  • A 1.6 mm drop tip
  • USB-A to USB-C cable

All specifications of the sensor are described it its Product manual, see downloads.

Suggested chemisty experiments:

The Wireless Drop Counter W13 can be used together with wireless pH, conductivity, temperature or ORP sensors in various experiments such as:

• pH titrations
• Conductivity titrations
• ORP titrations
• Temperature monitoring during titrations
