pH sensor

pH sensor

Item nr. BT61i Category
The pH Sensor measures the degree of acidity; pH value of a solution in the range between 0 and 14. The sensor consists of a pH amplifier and pH electrode. (031, ordered separately)

€ 69,50

111 in stock, ships in 2 business days

Add to wishlist
Added to wishlist

Description

The pH electrode is connected to the amplifier by means of a coax cable and a BNC connector. The pH sensor measures the pH value of a solution in the range between 0 and 14.

Technical specifications:

  • Measurement range: 0 .. 14 pH
  • Resolution: 0.005 pH
  • Temperature range: 5°C .. 80°C
  • Maximum measurement frequency: 100 kHz (CoachLab II+, WiLab) / 1 MHz (VinciLab 2)
  • Required: One sensor cable (BTsc_1 or BTsc_1Short) and 031 pH electrode
  • Warrantee: 3 years

All technical specifications of the sensor are described in the product manual, see downloads.

The pH sensor can be used for various experiments in biology, chemistry and environmental science such as:

  • Measuring pH values of different acids and bases
  • Acid-base titration experiments
  • Monitoring pH during chemical reactions
  • Investigating of water quality in streams and lakes

Additional information

Weight 0,08 kg

Product manual

Download

You may also like…

  • BTsc_1
    Cable for BT sensors, long
  • 031
    pH electrode

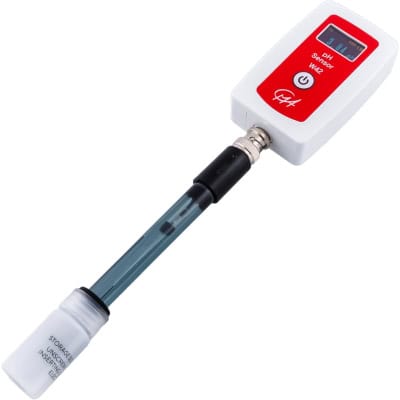

  • W42
