Flow rate sensor

Flow rate sensor

Item nr. BT40i Category

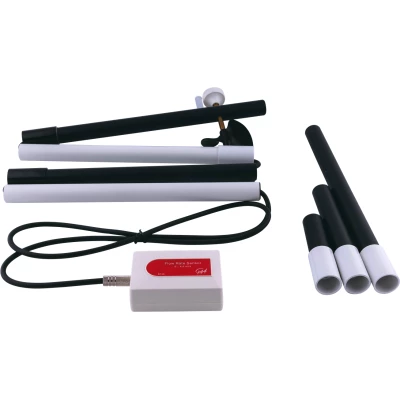

The Flow rate sensor BT40i measures the velocity of flowing water. It can be used to study the discharge, flow patterns, and sediment transport of flowing water. The Flow rate sensor is equipped with impeller rod with 5-meter cable.

€ 209,50

2 in stock, ships in 2 business days

Available on backorder (Shipping in 2–3 weeks)

Add to wishlist
Added to wishlist

Description

To assemble the sensor, simply unfold the four sections of the impeller rod and slide them together. Connect the rods to one another with a small push.
The sensor is delivered with three riser rods (short, medium, and long). The total length of the impeller rod, including all 3 risers, is 1.5 m.

Technical specifications:

  • Measurement range: 0 .. 4.0 m/s
  • Resolution: 0.005 m/s
  • Accuracy ±1% of full scale
  • Maximum measurement frequency: 100 kHz (CoachLab II+, WiLab) / 1 MHz (VinciLab 2)
  • Warranty: 3 years

All technical specifications of the sensor are described in the product manual, see downloads.

The Flow rate sensor can be used in the following experiments:

  • Calculating Discharge
  • Determining sediment transport rate for a stream or other body of water
  • Measuring and comparing flow rate at various locations in a stream

The Flow rate sensor needs a sensor cable BTsc_1 to connect to analog BT inputs of the CMA interfaces.

Product manual

Download
