Wireless photogate with pulley

Wireless photogate with pulley

Item nr. W44 Category

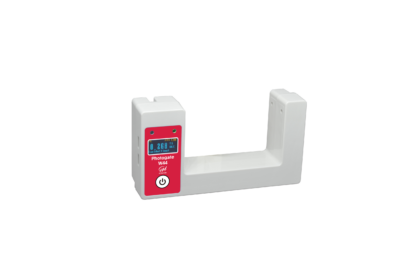

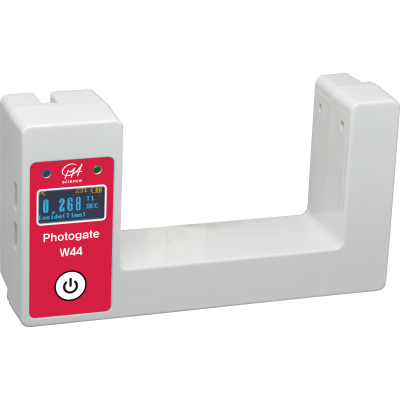

The wireless Photogate features a pair of light gates placed side by side that detect objects passing between its arms. It can be used for timing measurements with a single gate and for velocity measurements using both gates. It also supports position measurements when used with a Smart Pulley. In addition, multiple photogates can be connected in a daisy chain, allowing sequential measurements across up to five photogates.

Prices are only visible to logged in users. Sign in or create an account to view our prices.

Description

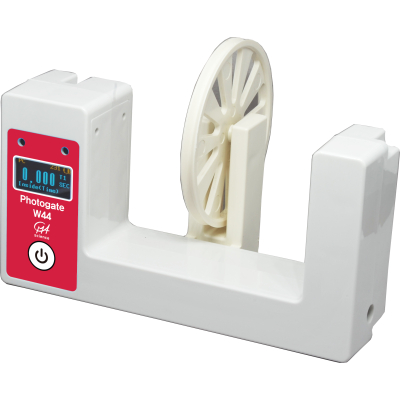

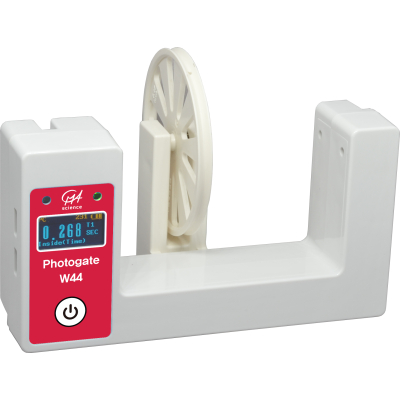

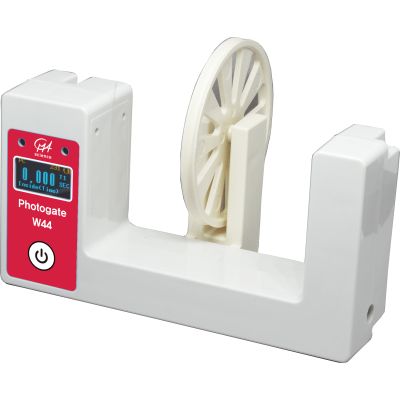

The wireless photogate can be used to measure: timing, velocity and distance, when combined with the (included) smart pulley.

The photogate is switched on and off using the power button. It has a color OLED colour display that shows sensor information, measured values, and the selected mode, allowing it to be used as a standalone measuring instrument. Press the button to turn it on, and hold it for about 5 seconds to turn it off.

The sensor can be used wirelessly via Bluetooth or wired via USB with the Coach 7 or Coach 7 Lite programs/apps on computers (Windows and Mac), Chromebooks and mobile devices (Android and iOS).

Technical specifications:

  • Measuring ranges: Digital: 0 (blocked gate) and 1 (unblocked gate) – used to measure time, distance and velocity
  • Detector rise/fall time: 2.5 μs / 3.8 μs
  • Pulley details: Diameter: 0.067 m (0.064 m in the groove), Circumference: 0.21 m (0.20 m in the groove), Spokes: 10
  • Warrantee: 36 months
  • OLED display: 0.96” 128 x 64px
  • Battery life: 6h when full (rechargeable)
  • Mounting rod: 13 cm
  • Warranty: 3 years

Technical specifications of the photogate sensor are described in the product manual, see downloads.

The wireless photogate can be used for a wide variety of physics experiments:

  • Measuring the acceleration due to gravity (use a transparent piece of plastic with stripes at regular intervals, which can be allowed to fall through the photogate),
  • Motion measurements using a Smart Pulley
  • Measuring the speed and acceleration of moving objects
  • Measuring time intervals of moving objects
  • Measuring the period of a simple pendulum
  • Studying rotational motion and its period.

Additional information

Weight 0,251 kg
Dimensions 18 × 9 × 6 cm
