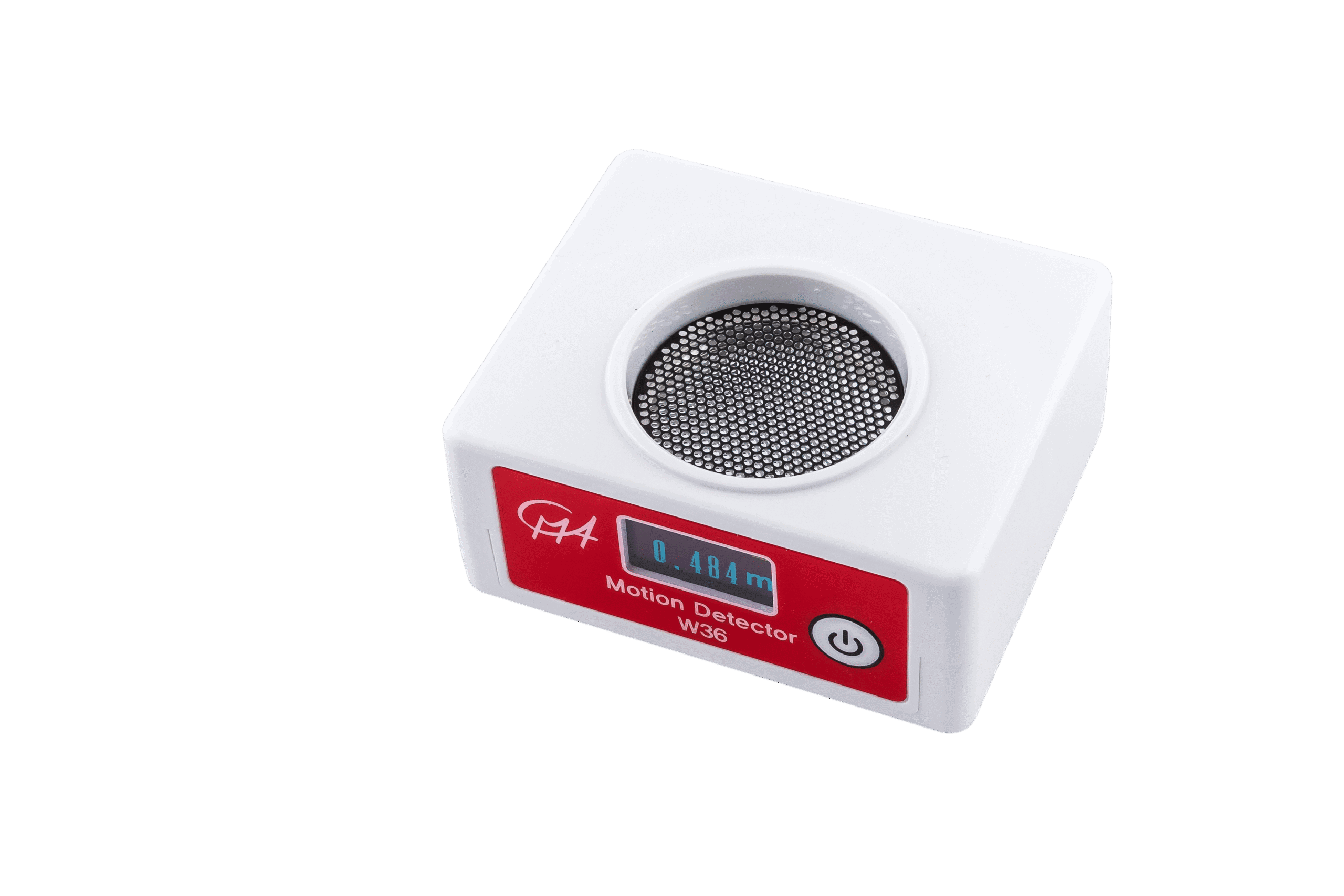

Wireless motion detector

Description

The sensor can be used wirelessly via Bluetooth or wired via USB with the Coach 7 or Coach 7 lite programs/apps on computers (Windows and Mac), Chromebooks and mobile devices (Android and iOS).
The sensor is equipped with an OLED color display which shows some sensor information and the measured by the sensor values. This makes the sensor suitable to use as an independent measuring instrument.

Technical specifications:

• Measuring ranges: -5 .. 5 mT or -200 .. 200 mT
• Resolution: 0.001 mT / 0.1 mT
• Warrantee: 24 months
• OLED display: 0.96” 128 x 64px
• Rod dimensions: 80 x 50 x 25 mm
• Maximal sampling rate: 100 Hz
• Battery life: 12h when full (rechargeable)
• Connection: Bluetooth 5, Low Energy (Mac, Android, iOS) Bluetooth 2.1, Classic (Windows) or USB-C 2.0

Full sensor specifications can be found in the Product Manual, see Downloads.

Suggested physics experiments:

• Walking toward and away from the sensor
• Simple harmonic motion, such as a weight hanging on a spring
• Newton’s laws of motion
• Acceleration due to gravity – free fall, objects dropped or tossed upward
• Motions of a dynamic cart
