VinciLab 2 data logger interface

Description

VinciLab 2 is a very powerful and versatile data logger for High School to University level.
It can be used with Mac and Windows computers, Chromebooks, mobile devices, wireless via Wi-Fi, or wired via USB.
It is a handheld Android device equipped with two processors, a main processor to control the device’s operating system and screen, and a measurement processor, which allows very fast data collection with up to 1 MHz sampling frequency (1000000 samples per second).

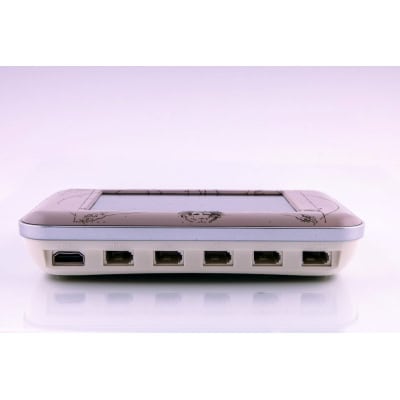

For connecting sensors, VinciLab 2 has four A1-A4 BT sensor inputs. It also has a built-in microphone and a 3-axis accelerometer.

VinciLab 2 has a 5” (capacitive) color touch screen and is equipped with Wi-Fi and Bluetooth.
For connecting sensors VinciLab 2 has four BT inputs. CMA BT sensors can be directly connected to the sensor inputs.

Through the HDMI connector the screen of VinciLab 2 can easily be shared on larger screens.

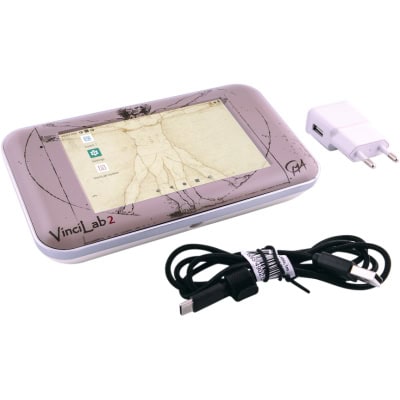

VinciLab 2 is delivered together with Power adapter, USB cable and VinciLab User’s Guide.

The VinciLab 2 data logger interface contains a Control Output and HDMI port. The support of USB communication between VinciLab 2 and a computer has been improved and is more user-friendly.

Technical specifications:

• OPERATING SYSTEM: Android
• DISPLAY: 5” (800 x 480 pixel) Capacitive Color Touch Screen
• RAM MEMORY: 2 GB
• USER MEMORY: 8 GB of flash memory for applications and user files. Expandable with a USB flash drive
• POWER: Rechargeable battery / Power adapter
• CONNECTIVITY: Wi-Fi 802.11 b/g/n, Bluetooth® 2.1 + EDR.
• COMPUTER CONNECTION: Mini USB C port for communication and powering
• USB PORT: Full USB port for USB peripherals
• OTHER PORTS: Audio In: for external microphone, Audio Out: DC and AC voltage signals between -5 .. 5V (two channels available)
• SENSOR INPUTS: Four BT (right-hand) inputs, CMA BT sensors can be connected directly (incl. Motion Detector BT55i). Each sensor input can also work as a counter.
• BUILT-IN SENSORS: 3-axis Accelerometer, Microphone
• ADC RESOLUTION: 12 bits
• SAMPLING FREQUENCY: Max. 1 MHz
• OUTPUT D1: BT socket for connecting CMA Control Box
• OUTPUT D2: HDMI port to connect external display
• SOFTWARE ON BOARD: Android apps and Coach 7 app for data collection, graphing and analysis
