MoLab Anemometer

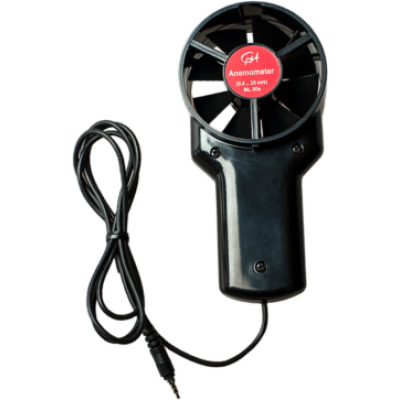

ML90s Anemometer

MoLab Anemometer

Item nr. ML90s Category
The Anemometer ML90s is a device for measuring wind speed. The sensor is a propeller-type anemometer with the axis of rotation parallel to the direction of the wind. The number of revolutions is counted via a magnet and reed sensor and is converted to wind velocity.

Prices are only visible to logged in users. Sign in or create an account to view our prices.

Create an account

Description

The Anemometer ML90s is a device for measuring wind speed. The sensor is a propeller-type anemometer with the axis of rotation parallel to the direction of the wind.

The number of revolutions is counted via a magnet and reed sensor and is converted to wind velocity.

Technical specifications:

  • Range: 0.4 .. 35 m/s
  • Resolution: 0.1 m/s
  • Maximum sampling rate: 10 Hz

Can be used in experiments to:

  • measure the wind speed of air generated by a variable speed fan
  • investigate why wind speed is slower over land than it is over the ocean
  • use together with a compass to determine wind direction.
