Temperature sensor -18..110°C

Description

The temperature sensor is not suitable for measurements above 110 °C.

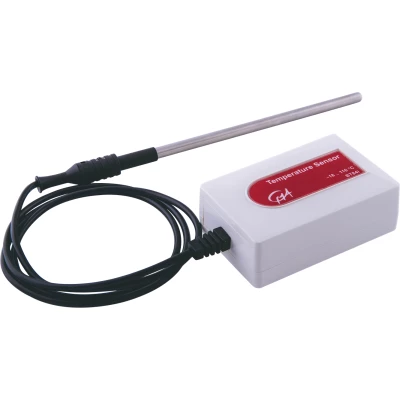

This sensor uses the LM34 solid-state temperature transducer. It is a precision integrated- circuit temperature sensor, whose output is linearly proportional to the temperature. The transducer is positioned in the point of a stainless steel tube.

Technical specifications:

• Measuring range: -40 to 110 °C
• Accuracy 0.07 °C
• Maximum temperature the sensor can withstand without damage: 110 °C
• Sensitivity: 18 mV / °C (linear)
• Maximum sample frequency: 100 kHz (CoachLab II+, WiLab) / 1 MHz (VinciLab 2)
• Tube length: 13 cm
• Warranty: 3 years

All technical specifications of the temperature sensor are described in the product manual, see downloads.

The Temperature sensor is an accurate laboratory sensor, which can be used in a variety of chemistry, biology and physics experiments, such as:

• Monitoring indoor and outdoor temperatures
• Monitoring freezing and boiling water
• Monitoring endothermic and exothermic reactions
• Specific heat experiments
• Insulation investigations
• Solar energy studies

The Temperature sensor can be directly connected to the analog BT inputs of the CMA interfaces.
Attention: The sensor cable BT – IEEE1394 needed to connect the sensor to an interface is not supplied with the sensor and has to be purchased separately (CMA Art. Nr BTsc_1 or BTsc_1Short).
